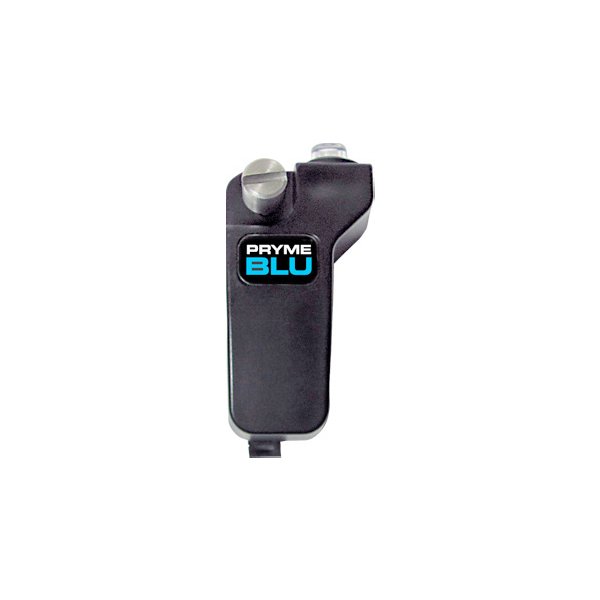

Pryme BT-511, Bluetooth Adapter for Kenwood Multi-pin Radios
PrymeBLU BT-511 Dongle (Adapter)Do you like the thought of not having to change your bluetooth headset when you get to work? The PrymeBLU allows the use of Bluetooth wireless audio accessories with your two-way radio.
Compatible with thousands of readily available Bluetooth headsets and other audio accessories. (audio accessories not included)
Easy pairing process. Stores paired connection to the wireless headset even if the Radio is powered off or Dongle is removed from the two-way radio.
No time delay on either Transmit or Received Audio messages.
Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions, or use an optional PRYME Wireless Bluetooth PTT switch (part number BT-PTT). (Optional accessories not included.)
Enhanced with optional wired PRYME Quick-Disconnect earphone or audio accessory for additional privacy. (Optional accessories not included.) RX and TX audio is automatically routed to the two-way radio or the appropriate wireless or wired audio accessory (Patent Pending) depending on what accessories are connected to the PRYMEBLU adapter. Status LED indicates connection to a compatible wireless accessory.
Works with the following Kenwood radios: NX-200, NX-300, TK-2140, TK-2180, TK-3140, TK-3148, TK-3180, TK-5210, TK-5220, TK-5310, TK-5320, TK-5400 and more. NOTE: Some radios may require reprogramming or modification
NOTE: The BT-511 is compatible only with Kenwood radios with 4-digit model numbers (example: TK-3180). Radios with 3-digit model numbers (example: TK-290) do not provide enough current to the accessory connector to power the Bluetooth Adapter. Some radios can be modified by a qualified technican to provide power by removing a current-limiting resistor.
*Bluetooth headset required and not included.
Download instruction manual HERE
